Hospital Bed Dimensions Worldwide: Complete Size Guide By Country

Why Hospital Bed Dimensions Matter

Hospital bed dimensions are not arbitrary - they reflect regional patient demographics, healthcare infrastructure, and safety regulations. The wrong dimensions can cause:

Patient safety issues: Side rail entrapment, fall risk, pressure points

Workflow problems: Beds not fitting through doorways, elevators, or imaging equipment

Compatibility issues: Mattresses, bed extenders, and accessories may not fit

Regulatory violations: Non-compliant beds may fail inspection in regulated markets

For international buyers (hospitals, distributors, government procurement), understanding regional dimension standards is critical for procurement planning.

Standard Hospital Bed Dimensions by Region

North America (US, Canada)

The North American standard for adult hospital beds is set by the FDA and Health Canada, based on the IEC 60601-2-52 international standard.

Parameter	Standard	Critical Care	Bariatric
Length	80" (2030mm)	84" (2130mm)	84-88" (2130-2235mm)
Width	36" (910mm)	36-42" (910-1070mm)	42-48" (1070-1220mm)
Height range (low)	16" (410mm)	14" (360mm)	16" (410mm)
Height range (high)	30" (760mm)	32" (810mm)	30" (760mm)
Load capacity	500 lb (225 kg)	500 lb (225 kg)	750-1000 lb (340-450 kg)

Common North American bed dimensions:

Standard adult bed: 80" x 36" (2030 x 910mm)

Critical care bed: 84" x 36" (2130 x 910mm) with full electric

Bariatric bed: 84-88" x 42-48" (2130-2235 x 1070-1220mm)

Pediatric bed: 55-65" x 28-32" (1400-1650 x 710-810mm)

United Kingdom and European Union

UK and EU hospitals follow the BS EN 60601-2-52 standard, which produces slightly narrower beds than North America.

Parameter	Standard	Critical Care	Bariatric
Length	80" (2030mm)	84" (2130mm)	84-88" (2130-2235mm)
Width	32" (810mm)	32-36" (810-910mm)	36-44" (910-1120mm)
Height range (low)	16" (410mm)	14" (360mm)	16" (410mm)
Height range (high)	30" (760mm)	32" (810mm)	30" (760mm)
Load capacity	220 kg	250 kg	300-450 kg

Common UK/EU bed dimensions:

Standard adult bed: 80" x 32" (2030 x 810mm)

Critical care bed: 84" x 36" (2130 x 910mm)

Bariatric bed: 84-88" x 42-44" (2130-2235 x 1070-1120mm)

H3: Asia-Pacific (Japan, China, Australia)

Asia-Pacific is more variable than North America or EU.

Japan (JIS standards):

Standard bed: 83" x 40" (2110 x 1010mm) or 77" x 36" (1960 x 910mm)

Critical care: 84" x 42" (2130 x 1070mm)

Note: Japanese hospitals often use wider beds (40") due to higher average BMI

China (YY/T medical device standards):

Standard bed: 80" x 36" (2030 x 910mm) - aligned with international standards

Critical care: 84" x 36" (2130 x 910mm)

Pediatric: 55" x 28" (1400 x 710mm)

Australia (aligned with UK/EU):

Standard bed: 80" x 32" (2030 x 810mm)

Critical care: 84" x 36" (2130 x 910mm)

Southeast Asia, Middle East, Africa:

Generally follow European dimensions

80" x 32-36" (2030 x 810-910mm)

Regional Dimension Comparison Table

Region	Length	Width	Height Range	Load Capacity
North America (US/Canada)	80" / 2030mm	36" / 910mm	16-30" / 410-760mm	500 lb / 225 kg
UK / EU	80" / 2030mm	32" / 810mm	16-30" / 410-760mm	485 lb / 220 kg
Japan	83" / 2110mm	40" / 1010mm	14-28" / 360-710mm	220 kg
China	80" / 2030mm	36" / 910mm	16-30" / 410-760mm	250 kg
Australia	80" / 2030mm	32" / 810mm	16-30" / 410-760mm	220 kg
Bariatric (all regions)	84-88" / 2130-2235mm	42-48" / 1070-1220mm	16-30" / 410-760mm	750-1000 lb / 340-450 kg
Pediatric (all regions)	55-65" / 1400-1650mm	28-32" / 710-810mm	Variable	150-200 kg

Pediatric Hospital Bed Dimensions

Pediatric beds require special dimensions and safety features:

Age Group	Length	Width	Side Rail Height	Load Capacity
Infant (0-3 years)	55" / 1400mm	28" / 710mm	12" / 305mm (min)	50 kg
Toddler (3-6 years)	60" / 1525mm	30" / 760mm	12" / 305mm (min)	75 kg
Child (6-12 years)	65" / 1650mm	32" / 810mm	12" / 305mm (min)	100 kg
Adolescent (12+ years)	72-80" / 1830-2030mm	34-36" / 860-910mm	Standard	150+ kg

Critical pediatric safety requirements:

Side rail spacing must not allow head/neck entrapment (max 2.36" / 60mm gap per IEC 60601-2-52)

Side rail height must prevent fall-over (min 12" / 305mm above mattress)

Mattress must fit snugly to prevent entrapment gaps

Bright colors and pediatric-friendly design to reduce anxiety

Bariatric Hospital Bed Dimensions

Bariatric beds accommodate patients over 250 kg (550 lb). They require:

Wider mattress platform: 42-48" (1070-1220mm) vs standard 32-36"

Reinforced frame: Tested to 1.5x rated capacity (typically 450-675 kg)

Higher-powered actuators: 8000-10000N thrust vs standard 6000N

Wider side rails: Compatible with wider mattress

Reinforced casters: Higher load rating (typically 200 kg per caster)

Parameter	Standard Bariatric	Heavy-Duty Bariatric
Length	84" / 2130mm	88" / 2235mm
Width	42" / 1070mm	48" / 1220mm
Height range	16-30" / 410-760mm	16-30" / 410-760mm
Load capacity	750 lb / 340 kg	1000 lb / 450 kg
Typical patient weight	250-340 kg	340-450 kg

Critical Care and ICU Bed Dimensions

ICU and critical care beds typically follow regional standards for length but add features:

Parameter	Standard	ICU/Critical Care
Length	80" / 2030mm	84" / 2130mm
Width	32-36" / 810-910mm	36-42" / 910-1070mm
Height range	16-30" / 410-760mm	14-32" / 360-810mm (wider range for procedures)
Functions	2-5	7 (full clinical range)
Lateral turning	No	Yes (15-30° each side)
X-ray board	No	Optional carbon fiber
Battery backup	Optional	Standard 4-8 hours

The extra 4" (100mm) in length accommodates taller patients and reduces foot-end pressure. The wider height range (14-32") enables lower positioning for fall prevention and higher positioning for procedures.

How to Choose the Right Dimensions

Step 1: Identify Your Region

Match the bed to your region's standard dimensions:

US/Canada: 80" x 36"

UK/EU/Australia: 80" x 32"

Japan: 83" x 40"

China: 80" x 36"

Other Asia/Middle East/Africa: 80" x 32-36"

Step 2: Consider Patient Demographics

Average BMI: Higher BMI populations need wider beds (40"+)

Pediatric patients: Choose pediatric-specific beds (55-65" length)

Bariatric patients: Choose bariatric beds (42-48" width, 300+ kg capacity)

Step 3: Verify Facility Compatibility

Doorway width: Standard hospital doorways are 36-42" (910-1070mm). Beds with side rails must fit through.

Elevator dimensions: Standard hospital elevators are 80" x 54" (2030 x 1370mm) inside. Bed + patient + staff must fit.

Imaging compatibility: CT/MRI bore diameters are typically 27-32" (700-800mm). Radiolucent boards must accommodate.

Room layout: ICU rooms are typically 150-200 sq ft (14-19 m²). Bed dimensions must allow caregiver access on both sides.

Step 4: Account for Mattress and Accessories

Mattress thickness: Standard 6" (150mm). Thicker mattresses (8-10" / 200-250mm) for pressure ulcer prevention reduce effective side rail height.

Bed extenders: Add 4-8" (100-200mm) to length for tall patients. Verify side rail compatibility.

IV poles and accessories: Standard height 60-72" (1525-1830mm) above mattress. Verify clearance with room ceiling.

ICARE Hospital Bed Dimensions

Model	Type	Length	Width	Height Range	Load

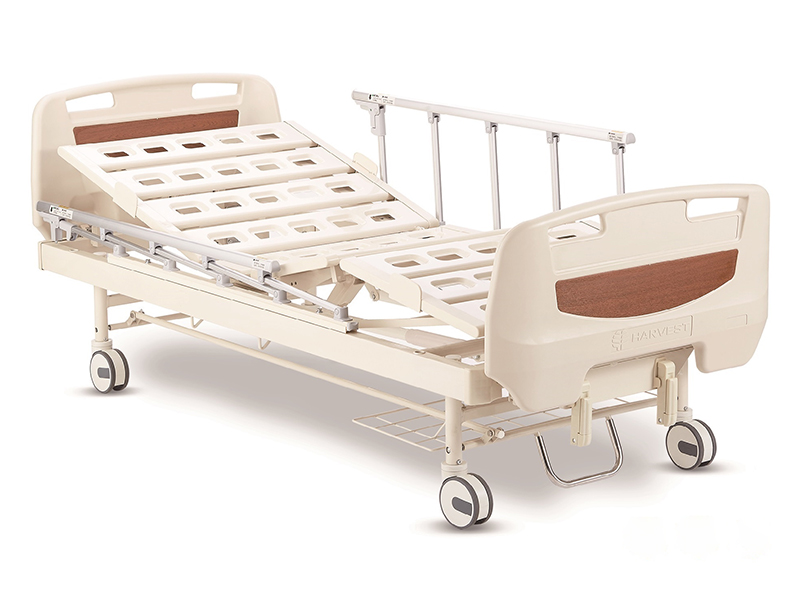

CE-802 Manual	Manual	80" / 2030mm	36" / 910mm	16-28" / 410-710mm	200 kg
CE-803 Manual	Manual	80" / 2030mm	36" / 910mm	16-28" / 410-710mm	200 kg
CD-803 Electric	5-function	80" / 2030mm	36" / 910mm	16-30" / 410-760mm	250 kg

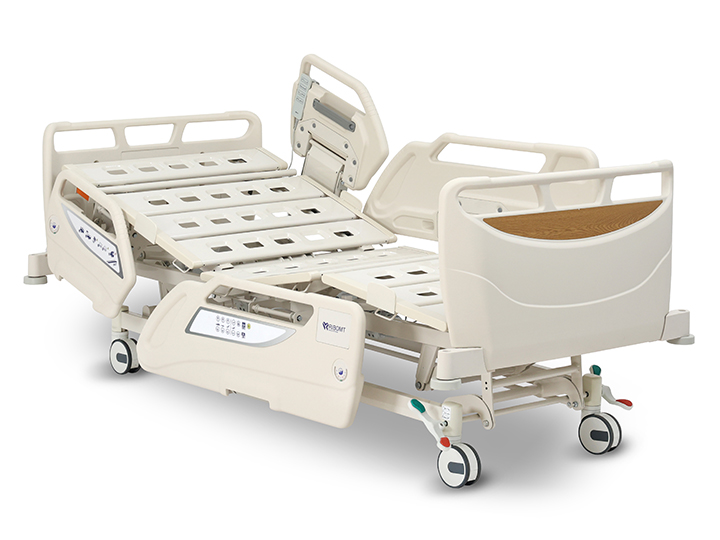

CD-804 Electric	5-function	84" / 2130mm	36" / 910mm	16-30" / 410-760mm	250 kg
CD-805 ICU	7-function	84" / 2130mm	36" / 910mm	14-32" / 360-810mm	300 kg

ICARE beds are manufactured to international dimensions (80" x 36" or 84" x 36"). Custom dimensions available for volume orders. Pediatric and bariatric variants available on request.

Frequently Asked Questions

What are the standard hospital bed dimensions?

Standard adult hospital beds are 80" (2030mm) long x 36" (910mm) wide in North America, and 80" x 32" (810mm) in UK/EU. Asia-Pacific varies: Japan uses 83" x 40", China uses 80" x 36", Australia follows UK/EU.

What is the width of a hospital bed?

Standard hospital bed width is 36" (910mm) in North America, 32" (810mm) in UK/EU, and 40" (1010mm) in Japan. Bariatric beds are 42-48" wide. Pediatric beds are 28-32" wide.

What is the length of a hospital bed?

Standard hospital bed length is 80" (2030mm) for general use and 84" (2130mm) for critical care. Pediatric beds are 55-65" long. Bariatric beds can reach 88" (2235mm).

What is the height range of a hospital bed?

Standard hospital beds adjust from 16" (410mm) low to 30" (760mm) high. ICU beds have a wider range, from 14" (360mm) to 32" (810mm), for fall prevention and procedural access.

Do hospital bed dimensions vary by country?

Yes. North America uses 80" x 36", UK/EU uses 80" x 32", Japan uses 83" x 40", China uses 80" x 36", Australia uses UK/EU dimensions. Beds manufactured for one region may not be optimal for another.

What is the weight capacity of a hospital bed?

Standard hospital beds support 220-250 kg. Bariatric beds support 340-450 kg. Critical care and ICU beds typically support 250-300 kg. Pediatric beds support 50-150 kg depending on age group.

Key Takeaways

3 main regional standards: North America (2030 x 910mm), UK/EU (2030 x 810mm), Asia-Pacific (variable).

Length is consistent: Most adult hospital beds are 80-84" (2030-2130mm) long regardless of region.

Width varies most: US is widest (36"), UK/EU is narrower (32"), bariatric reaches 42-48".

Critical care beds add features: Same dimensions but with full electric adjustment, X-ray compatibility, and ICU positioning.

Pediatric beds are 55-65" long x 28-32" wide with side rail spacing compliant with pediatric safety standards.

Bariatric beds support 300-450 kg with reinforced frames and wider platforms (42-48").

Verify before international shipment: Beds manufactured for one region may not fit doorways, elevators, or existing room layouts in another.

Conclusion

Hospital bed dimensions vary by region but cluster around three main standards: North American (80" x 36"), UK/EU (80" x 32"), and Asia-Pacific (variable). Length is consistent at 80-84" for adult beds, while width varies from 32-40" based on regional patient demographics.

For international procurement, always verify dimensions match your facility's doorways, elevators, and room layouts. Pediatric and bariatric variants require special dimensions and safety features beyond standard bed specifications.

ICARE manufactures hospital beds to international dimensions (80" x 36" or 84" x 36") with adjustable features for global markets. Browse the complete hospital bed lineup or request custom dimensions for volume orders.
