Emergency Beds
Multi-functional rescue beds with double hydraulic lifting systems. Designed for emergency rooms, endoscopy centers, and operating rooms with central brake systems.

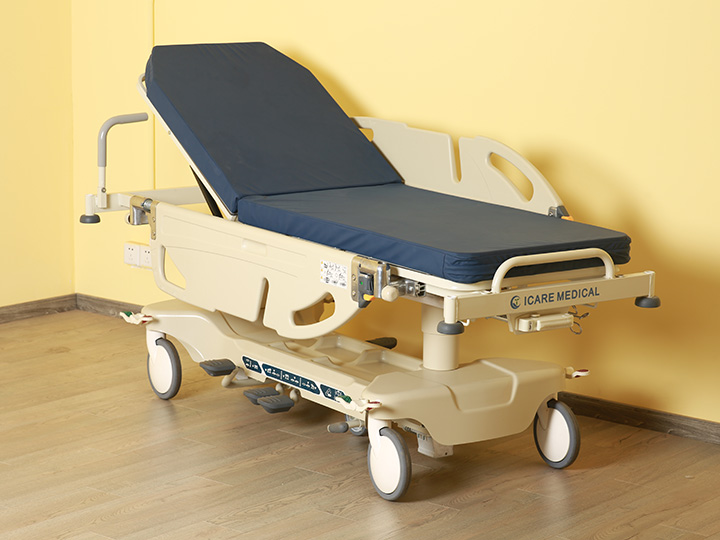

Lightweight Rescue Beds
Passive hydraulic drive, specializing in emergency, operating room, ICU critical patient transportation and rescue.Dual hydraulic, more stable, higher guardrail strength, suitable for high-frequency critical transportation
Main Features of Stainless Rescue Bed
Hydraulic lifting, adjustable backrest, leg, and bed tilt, one click CPR levelingX-ray transmission through the bed board, bedside imaging without the need to move the patient
Central control four-wheel brake+guidance to the fifth wheel, smooth implementation
Fully enclosed folding guardrail, equipped with oxygen bottle rack and infusion rack as standard
Steel rustproof bedstead, thickened waterproof mattress, strong bearing, easy to disinfection and sterilization
Suitable for departments
Emergency room/Endoscopy center/Operating roomCharacteristic
Dual hydraulic lifting, lighter and more flexible push, PP guardrail can be placed horizontally, integrated structure, no riveting, never loose.The safe working load is higher, the four corner central control brake is easier to operate.
Core parameters
Dimensions: Approximately 2150mm in length and 870mm in width; bed board measuring 1880 × 620mmLifting height: 580-900mm (hydraulic lifting)
Back inclination angle: 0-90 ° (gas spring assisted)
Knee tilt angle: 0-40 °
Overall tilt: -18 ° -+18 °
Load bearing capacity: 220kg (safe working load)
Bed board: ≥ 5mm anti double special board, can transmit X-rays, suitable for bedside photography
Framework: High quality cold-rolled steel, phosphating+electrostatic spraying, rust and impact resistance
Guardrail: 6-speed metal folding guardrail, one click lifting, anti pinch function
Casters: 4 × 200mm central control silent wheels, one foot four-wheel brake; Fifth wheel with center (straight mode, anti deviation)
Mattress: ≥ 70mm waterproof and anti-static, zipper removable and washable
Attachment: Infusion rack, oxygen cylinder tray (with a load capacity of 10kg), bed end recording table
Key functions
Hydraulic lifting+multi angle adjustment: meets the needs of rescue, resuscitation, and transportation positionsCPR emergency reset: One click flattening of the bedside for rapid cardiopulmonary resuscitation
Central control brake+fifth wheel: stable narrow range travel, reliable braking, and silent implementation
X-ray transparent bed board: can be directly imaged during transportation, reducing the need for movement
Waterproof and easy to clean: The whole machine is resistant to disinfection and suitable for emergency infection control
